Send InquiryMICROTEST USB Type-C Tester 8761NAC
MOQ : 1 Unit
MICROTEST USB Type-C Tester 8761NAC Specification
- Usage
- 435x145x406 mm
- Voltage
- 5 Ampere (amp)
- Weight
- 8.44 Kilograms (kg)
- Material
- Plastic, metal
- Power Supply
- Electric
- Application
- Industrial
- Temperature
- As per industry norms Celsius (oC)
MICROTEST USB Type-C Tester 8761NAC Trade Information
- Minimum Order Quantity
- 1 Unit
- Supply Ability
- 100 Units Per Month
- Delivery Time
- 7 Days
- Main Domestic Market
- All India
About MICROTEST USB Type-C Tester 8761NAC
- 4-wire measurement conductance 1m-52
- Test pin 64/128
- E-Marker IC Test
- Voltage Drop Test (5A)
- Open/Short
- Continuity Test
- AC/DC Hipot Test
- DC insulation
- Support bar code scan and print function
- Automatically identify the normal or reverse plugin of wire or connectors
SPEC
| Model | 8761NAC | ||
| AC Hi pot Test | 100V-700V | ||
| DC Hi pot Test | 50V-1000V | ||
| Test Pin | 64/128 | ||
| Model | 8761NAC | |
| Safety Hi pot Test | ||
| AC Hipot Leakage Current | 0.01mA -5mA | |
| AC Arcing Detection | 1-48 | |
| DC Hipot Leakage Current | 0.1µA-1000µA | |
| DC Arcing Detection | 1-48 | |
| DC Hipot Insulation Resistance | 1M-1.2G | |
| Hipot Output Accuracy | ±5% | |
| Hipot Measurement Basic Accuracy | ±5% | |
| Rated Output | 5Vdc | |
| Hipot Measurement Time | 0.01™ - 60™ | |
| Wire Specifications | Maximum allowable capacitance 5¼F | |
| Low Voltage Electrical Test | ||
| Measuring Mode | 4-Wire Test | |
| Continuity Test | 1m-52 | |
| Intermittence Continuity Test | 100m-52K | |
|
O/S Intermittence O/S Quick Intermittence open circuit |
1k-100k | |
| O/S Determinal Judge | ” | |
| Single-Side Test | ” | |
| OS Positive and Negative Judgment Method | Learning netlist by four groups | |
| OS Voltage | Adjustment range 0.1V-4V | |
| OS Netlist Test Mode | Pattern/point-by-point scanning | |
| Component test | ||
| Resistance | Measurement Range | 50m-20M |
| Level Signal | 0.5-3V | |
| Current Signal | 10mA | |
| Capacitance | Measurement Range | 10pF-12µF |
| Level Signal | 0.3V-1.2V | |
| Frequency Signal |
AUTO Gear (Optional) 48Hz/480Hz/4.8kHz/48kHz |
|
| Diode | Measurement Range | 0-6.8V |
| Other Function | ||
| Advanced Functions | Programmable continuous test / Pin search/Auto-diagnosis | |
| Test Scan Mode | Auto, Manual, External Trigger | |
| Measurement Signal | Low Voltage Measurement Signal | |
| Panel | System/Rapid /Edit / Function | |
| Indicator | Pass/Fail HV LED red-green indicator lights / Screen Display /Sound | |
| Operation | Manual, Auto, Remote Control | ||
| Built-in Storage | Number of test file up to 500 sets | ||
| Power Supply | Fixed Voltage | 115/230 Vac ±10% | |
| Frequency | 60/50Hz | ||
| Power consumption | 300VA | ||
| Environment | Temperature | 0ž-40ž | |
| Humidity | RH75% | ||
| Display | 320*240 dot-matrix display | ||
|
Dimension (W*H*D) |
64PIN | 435x145x406 mm | |
| 128PIN | 435x145x406 mm | ||
| Weight | 64PIN | 8.44Kg | |
| 128PIN | 9.3Kg | ||
| Interface | RS-232, USB Host, Print, Remote | ||
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Cable Harness Tester Category
MICROTEST 4 Wire Cable Tester 8761 Series
Minimum Order Quantity : 1 Unit
Material : Plastic, metal
Voltage : 220 Volt (v)
Power Supply : Electric
Weight : 8.44 Kilograms (kg)

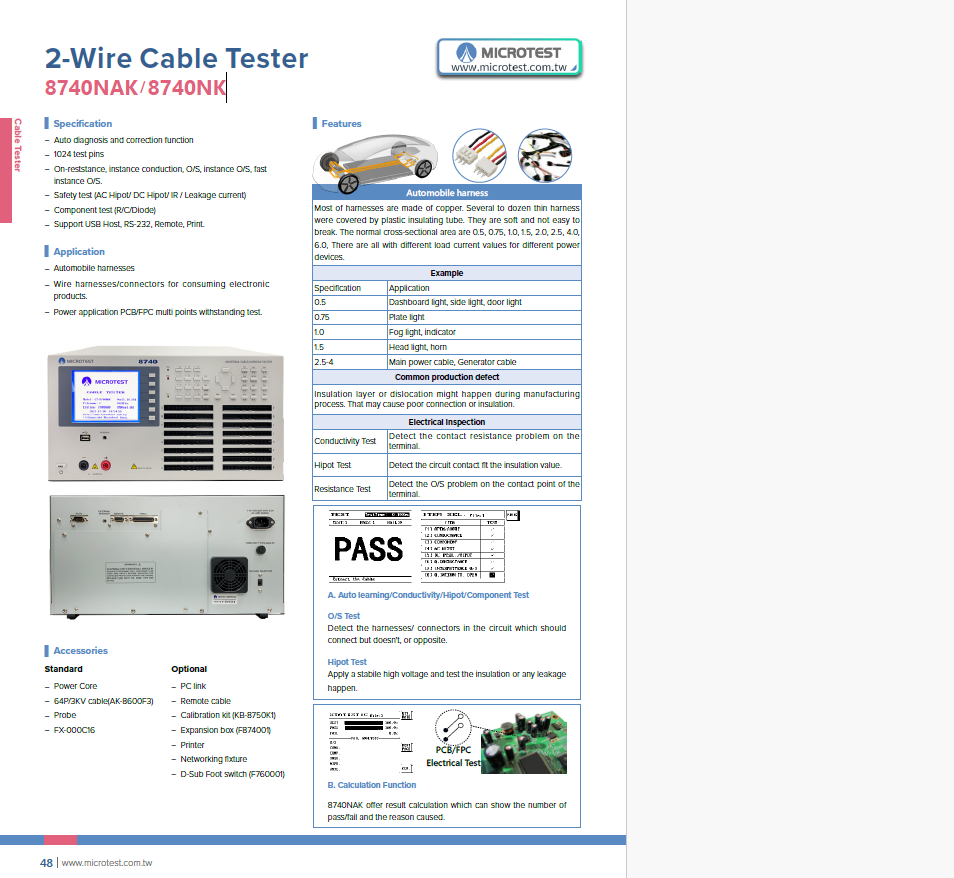

MICROTEST 2 Wire Cable Tester 8740 Series
