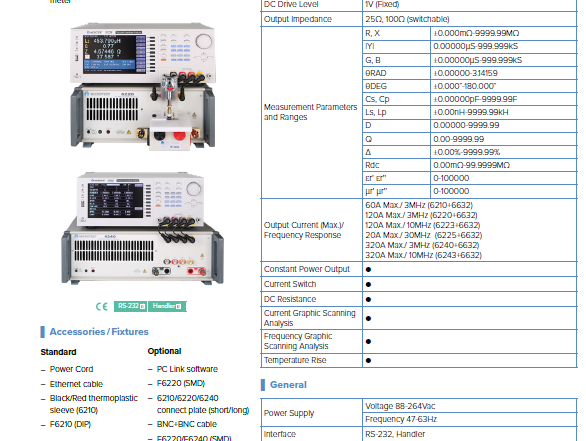

MICROTEST DC Bias Current Test System

Name: MICROTEST DC Bias Current Test System
Brand: Wintest Technological Solutions
Price: 1000 USD
Availability: InStock

Price 1000 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

MICROTEST DC Bias Current Test System Specification

Gas Pressure
0.5 - 0.7 MPa (if applicable)

Max Height
400 mm (including enclosure)

Application
Inductors, Transformers, Magnetic Components DC Bias Saturation Test

Frequency
DC / 50-60Hz

Humidity
Up to 85% RH

Operating Voltage
AC 100-240V

Features
Automatic test curve plotting, data export, multi-channel support

Test Range
1A - 100A DC

Port Size
BNC / Banana / Custom

Display Type
7-inch LCD Touch Screen

Measuring Range
1A - 100A DC continuous

Interface Type
USB, RS232, LAN

Power Supply
AC 100-240V, 50/60Hz

Resolution
1 mA / 1 V

Mounting Type
Bench-top (tabletop)

Number of Specimens
4 channels (parallel testing)

Temperature
10C - 40C

Specimen Size
Up to 80 mm (diameter) / 100 mm (height)

Automation Grade
Fully automatic

Accuracy
0.5% F.S.

Response Time
<100 ms

Usage
Research, Production Line, QA/QC Testing

Capacity
Up to 10,000 mAh (based on DUT)

Machine Weight
Approx. 35 kg

Test Speed
Up to 200 tests/hour

Test Width
Up to 320 mm

Test Stroke
Max 150 mm

Control Mode
Automatic / Manual

Data Storage
Internal 16GB with USB back-up

Software Compatibility
Windows-based Test Suite Included

Safety Function
Overcurrent/Overtemperature Protection

Current Output Steps
10 mA steps programmable

Cooling
Intelligent Forced Air Cooling

Equipment Type
Fully automatic DC Bias Current Test System

PC Connectivity
LAN / USB download

Compliance
CE, RoHS certified

Memory
Stores up to 10,000 test records

Dimensions
520mm x 480mm x 400mm

Voltage Output Range
Up to 65V DC

Calibration
Auto-calibration included

Signal Output
Supports BNC analog output

Language Support
English, Chinese

MICROTEST DC Bias Current Test System Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About MICROTEST DC Bias Current Test System

Spotlight your testing workflow with the valiant MICROTEST DC Bias Current Test System-an exceptional solution for precision DC bias saturation analysis on inductors, transformers, and magnetic components. Featuring fully automatic operation, this stellar system allows programmable 10 mA current steps and parallel multi-channel specimen testing. The integrated Windows-based suite, internal 16GB storage (USB backup), and auto-calibration elevate accuracy and convenience. Intelligent forced-air cooling, CE/RoHS compliance, and robust overcurrent/overtemperature protection ensure operational safety. Purchase or procure this advanced system for research, QA/QC, and mass production environments.

Optimized for Broad Applications and Simple Usage

The MICROTEST DC Bias Current Test System is engineered for surface and component-level DC bias saturation testing of inductors, transformers, and magnetic elements. It accommodates specimens up to 80 mm in diameter and 100 mm in height, testing up to four samples simultaneously for research, production, or quality assurance. Users apply the test current via automatic or manual modes, benefiting from intuitive controls and precise programmable steps tailored for high-capacity components up to 10,000 mAh.

Swift Delivery, Trusted Certifications, and Sample Options

With express shipping services, the MICROTEST DC Bias Current Test System can be delivered promptly to your facility worldwide. This product is backed by CE and RoHS certifications, ensuring global compliance and reliability. Sample testing units are available for evaluation-simply request one, and a nominal charge may apply. Count on your system reaching you quickly, packaged securely for installation and immediate use without delay.

FAQ's of MICROTEST DC Bias Current Test System:

Q: How does the MICROTEST DC Bias Current Test System ensure safety during testing?

A: The system incorporates overcurrent and overtemperature protection functions to maintain operator and device safety during operation.

Q: What applications is the MICROTEST DC Bias Current Test System suitable for?

A: Designed for DC bias saturation testing, it is ideal for use with inductors, transformers, and magnetic components in research, QA/QC, and production settings.

Q: What is the process for data storage and export on this system?

A: Test data is internally stored (up to 16GB) and can be conveniently exported via USB, LAN, or RS232 interface for further analysis and record-keeping.

Q: When should I recalibrate the system, and how is calibration managed?

A: The system offers built-in auto-calibration, minimizing manual recalibration needs and ensuring long-term measurement accuracy.

Q: Where can this system be mounted and what are its dimensions?

A: The MICROTEST system is designed for benchtop (tabletop) mounting, with compact dimensions of 520mm x 480mm x 400mm, making it suitable for most laboratory or production spaces.
