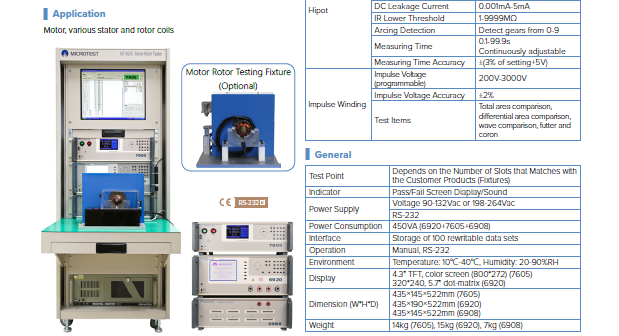

MICROTEST Motor Rotor Testing System

Name: MICROTEST Motor Rotor Testing System
Brand: Wintest Technological Solutions
Price: 1000 USD
Availability: InStock

Price 1000 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

MICROTEST Motor Rotor Testing System Specification

Max Height
200 mm

Temperature
5~40C

Frequency
50/60Hz

Equipment Type
Motor Rotor Testing System

Number of Specimens
1~4 rotors

Response Time
0.5 sec

Features
Data Storage, Auto-Calibration, Multi-language Support

Operating Voltage
220V AC

Measuring Range
0~50 mm

Humidity
85% RH

Gas Pressure
0.5~0.7 MPa

Power Supply
AC 220V, 50/60 Hz

Accuracy
0.01 mm

Resolution
0.001 mm

Interface Type
RS232/RS485

Specimen Size
10~100 mm

Mounting Type
Bench Top

Application
Motor Rotor Performance Testing

Port Size
1/4 NPT

Display Type
7-inch Color Touch Screen

Automation Grade
Automatic

Test Range
0~50 mm

Usage
Rotor Reliability and Life Testing

Capacity
10 kg

Machine Weight
120 kg

Test Speed
10~200 rpm

Test Width
0~100 mm

Test Stroke
0~200 mm

Control Mode
PLC Touch Screen Control

Motor Type Compatibility
AC/DC Rotors

Data Backup
Supports External Storage

Test Modes
Continuous / Intermittent

Test Data Output
USB, Ethernet

Calibration
Supports Automatic and Manual

Safety Features
Emergency Stop, Interlock

Alarm System
Overload, System Fault

Operating System
Embedded Real-time OS

MICROTEST Motor Rotor Testing System Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

About MICROTEST Motor Rotor Testing System

Take advantage of the gilt-edged MICROTEST Motor Rotor Testing System, designed for first-rate performance and masterful adaptability. This customizable machine excels in testing AC/DC rotors, accommodating various specimen sizes (10-100 mm) and numbers (1-4 rotors). Benefit from clearance pricing and advanced features such as USB/Ethernet data output, overload alarms, and robust safety mechanisms including emergency stop and interlock. Automated or manual calibration, intuitive PLC touch screen, and multi-language support make this bench top system a reliable partner for rotor reliability and life testing.

Advanced Features and Versatile Usage

The MICROTEST Motor Rotor Testing System combines customizable test modes-continuous or intermittent-with masterful control via a 7-inch color touch screen. Designed for AC/DC rotors, it also delivers gilt-edged accuracy (0.01 mm) and rapid response in reliability and life testing. Special features, such as data backup on external storage, multi-language support, and comprehensive alarm systems, ensure optimum uptime and precision. Automatic calibration and PLC-integrated processes make it ideal for precise and repetitive industrial usage.

Global Reach, Certifications, and Export Details

Catered for international clients, the MICROTEST system's main export markets include East Asia, Europe, and North America. Our robust supply chain ensures swift clearance through Taiwan's main FOB ports, and all shipments adhere to international quality certifications. Valuation and outlay transparency is guaranteed at every transaction point, making purchase order processing seamless. Whether you're an importer, trader, or supplier, you can rely on this system's certified performance and accessible export process for rapid deployment.

FAQ's of MICROTEST Motor Rotor Testing System:

Q: How does the MICROTEST Motor Rotor Testing System ensure reliable performance in rotor life testing?

A: The system employs precision testing modes (continuous/intermittent) and an intuitive PLC touch screen interface. Automatic and manual calibration, coupled with robust alarm and emergency stop features, secures both accurate results and operator safety.

Q: What types of motor rotors are compatible with this equipment?

A: The MICROTEST system is customizable for testing AC and DC rotors, accommodating specimen sizes between 10 and 100 mm and supporting 1 to 4 rotors during each test cycle.

Q: Where is the system commonly exported and what certifications support its valuation?

A: It is frequently exported to markets in East Asia, Europe, and North America via Taiwan FOB ports, and is shipped with internationally recognized quality certifications.

Q: What process is involved in backing up test data?

A: Operators can easily backup and export test data using USB or Ethernet connections, with additional support for external storage, ensuring data reliability and accessibility.

Q: When should I use the safety features of this machine?

A: Operators should activate emergency stop or interlock features during overloads, system faults, or any unsafe operational occurrences to prevent equipment damage and maintain safety.
